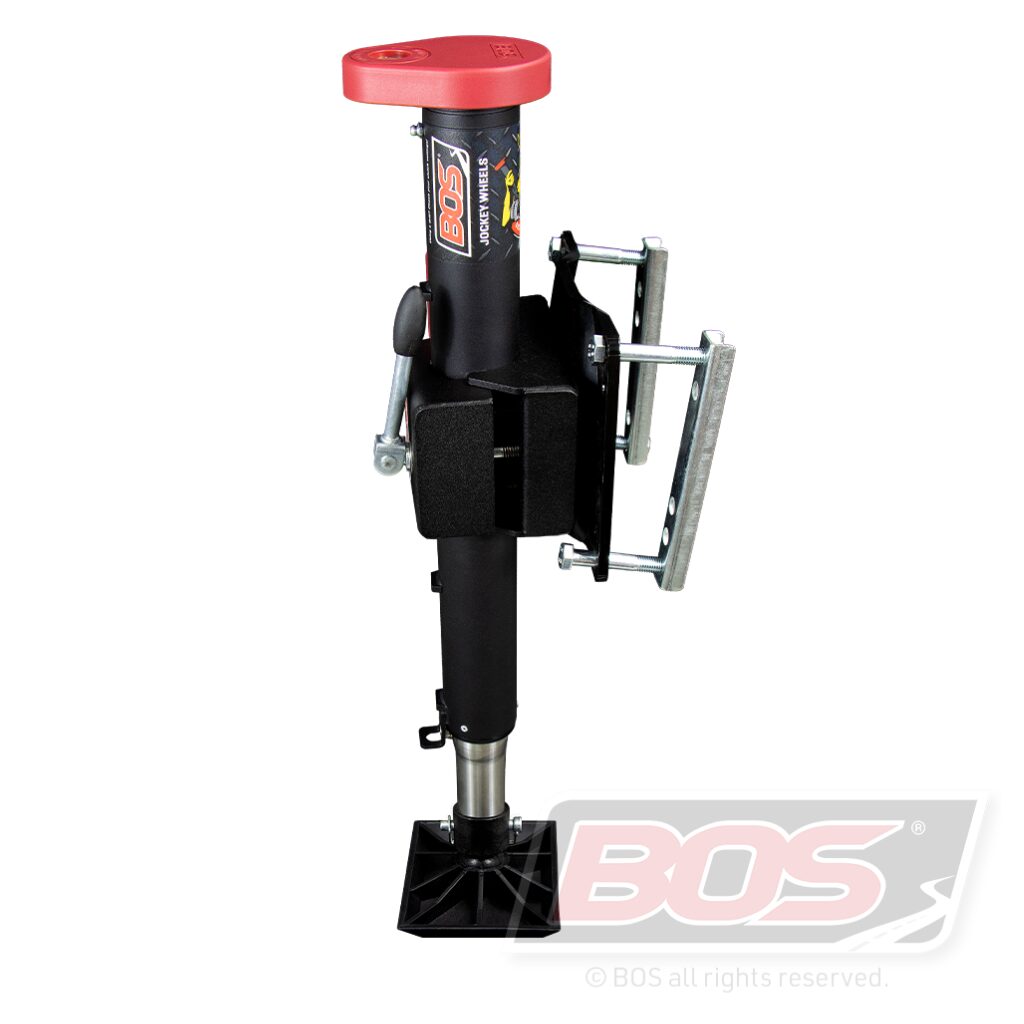

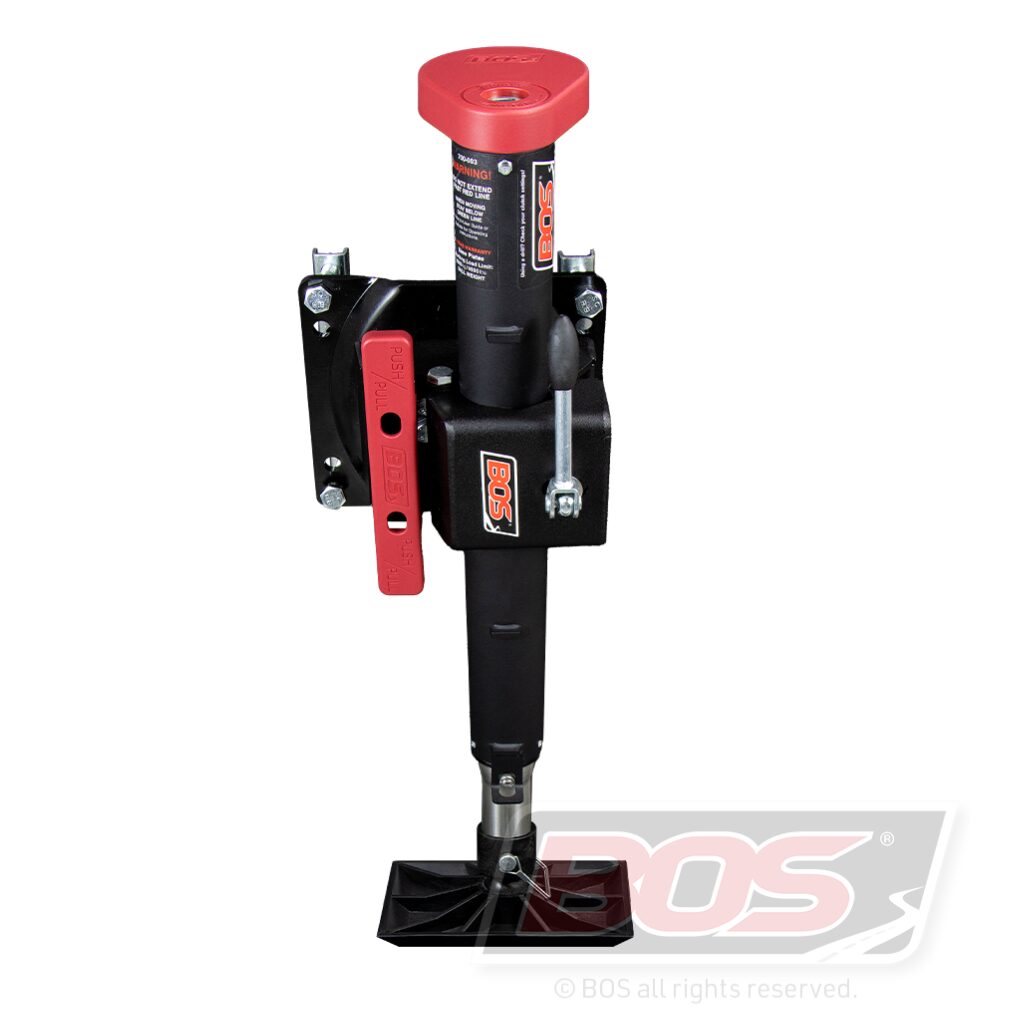

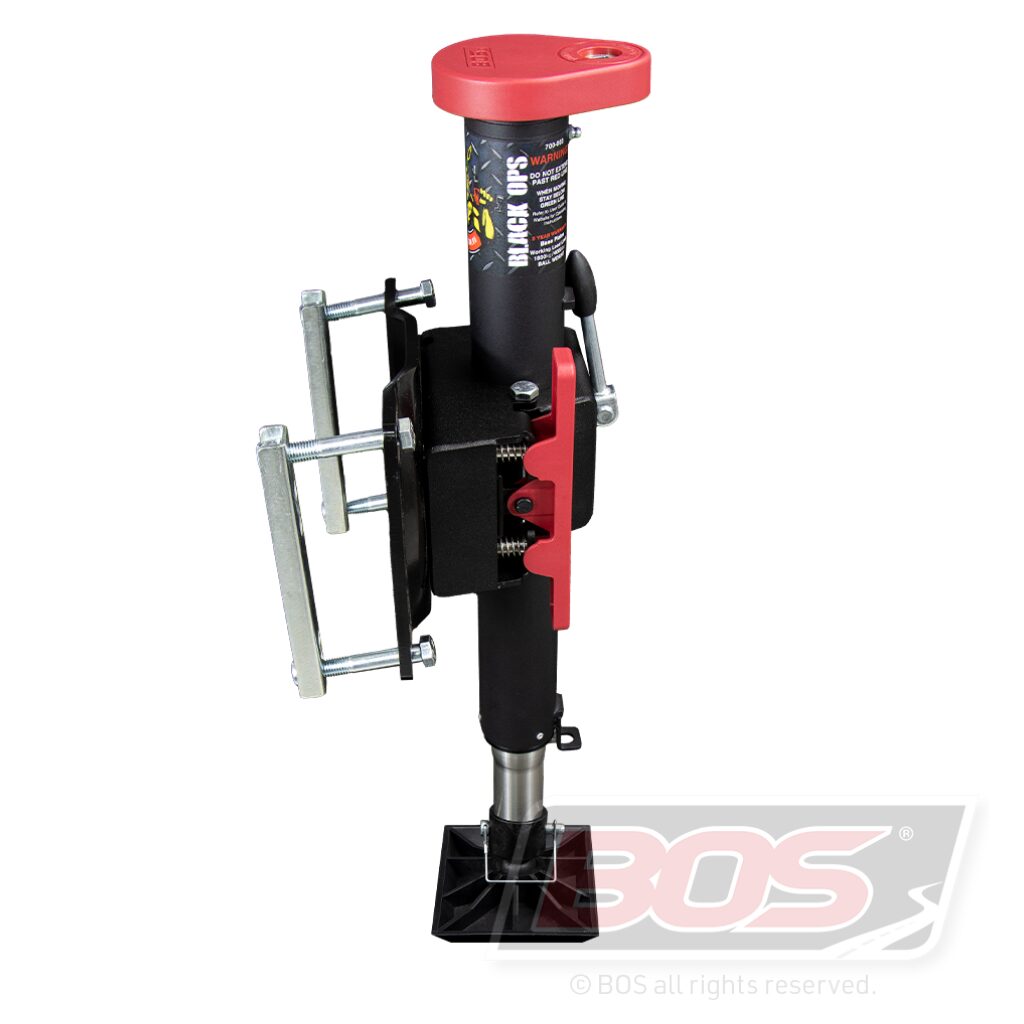

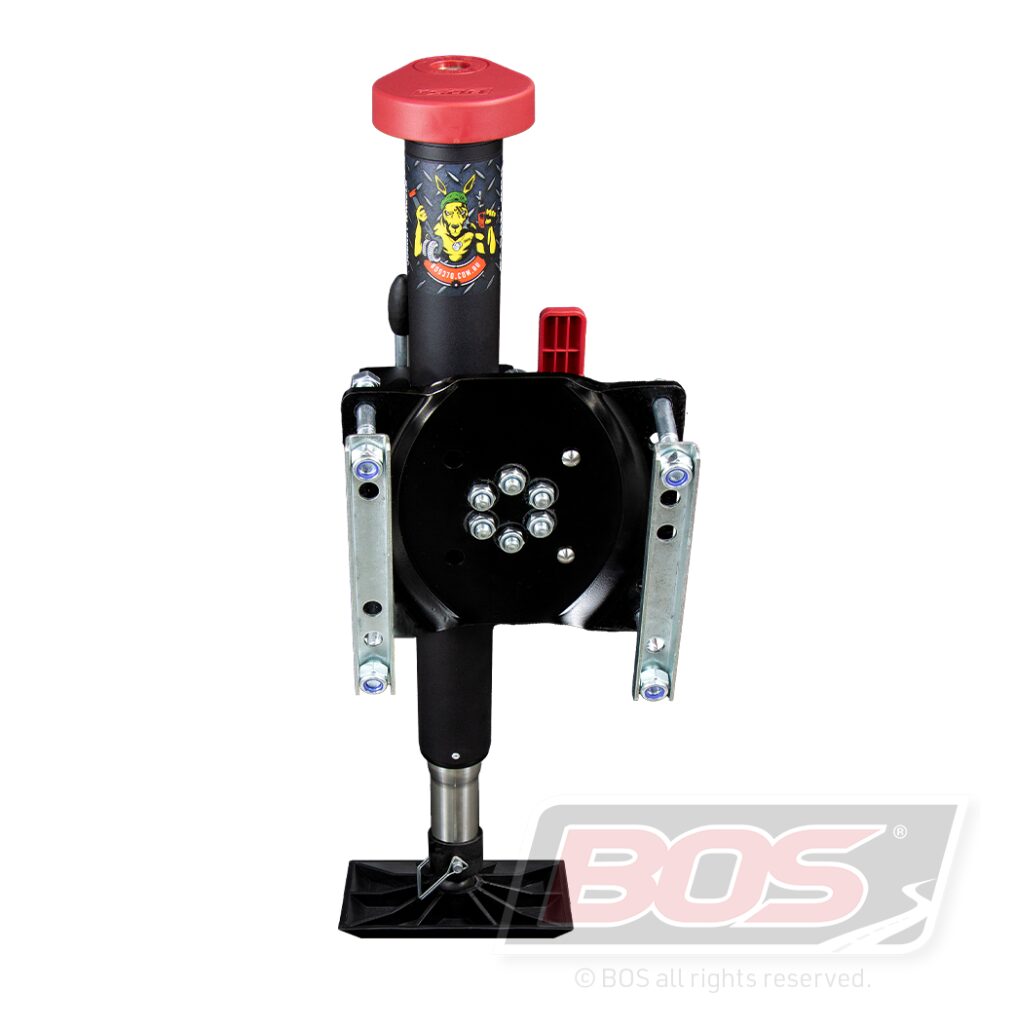

BOS 700-025 4 LUG Black Ops Gearbox Swing-Away Unit. 4 lug “Black Ops” style with the swing away bracket is ideal for the campers and hybrid vans, now with the 4 lug black ops unit giving you more height adjustment for the higher USA tow trucks. This allows the unit to pivot out of the way when not in use, saving space and reducing obstruction. Use it where you need the flexibility to move the component away.

FEATURES AND BENEFITS:

• Ideal for camper and work trailers that need a strong swing away unit.
• The 60mmØ Jockey unit is adjustable in swing away bracket to gain extra height if required.
• Patented BOS Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
• Unit can be left on while traveling, locking it in with medium clutch setting and the BOS traveling strap.
• The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
• Unique patented BOS PUSH/PULL Handle makes release & rotation easy.
• 4 LUG
• 5 Year Warranty

SPECIFICATIONS:

• Will fit Draw Bars (chassis) from 100-150mm (4”-6”) High x 50mm (2’’) Wide.
• 120mm Pipe extension when extra height is needed.
• Load Capacity of up to 500kg.
• 355mm Extended travel.
• Key features for BOS 700-025 4 LUG Black Ops Gearbox Swing-Away Unit, click here.
• Product dimensions BOS 700-025 4 LUG Black Ops Gearbox Swing-Away Unit, click here.

WHAT IS INCLUDED:

• BOS 700-025 4 LUG Black Ops Gearbox Swing-Away Unit
  • 1 x 350-001 Swing Away Bracket 60mm
  • 1 x 010-062 Articulated Base Plate
  • 1 x 020-003 Manual Handle 12mm
  • 1 x 020-007 12mm Drill Drive Piece
  • 2 x 020-018 Quick Release Pin
  • 1 x 370-STRAP Travel Strap
  • 1 x 020-037 Jockey Weather Cover
  • 1 x 020-026 Stainless Steel Extension 120mm
  • 1 x 010-035 Stubby Can Cooler
  • 1 x 010-036 Stubby Bottle Cooler

IMPORTANT INFORMATION:

The BOS team of experts have a wealth of knowledge and experience, and they are always ready and willing to help. If you have a technical question or just need some advice about the BOS 700-025 4 Black Ops Gearbox Swing-Away Unit, please call BOS Customer Service directly, 02 9623 6922.
