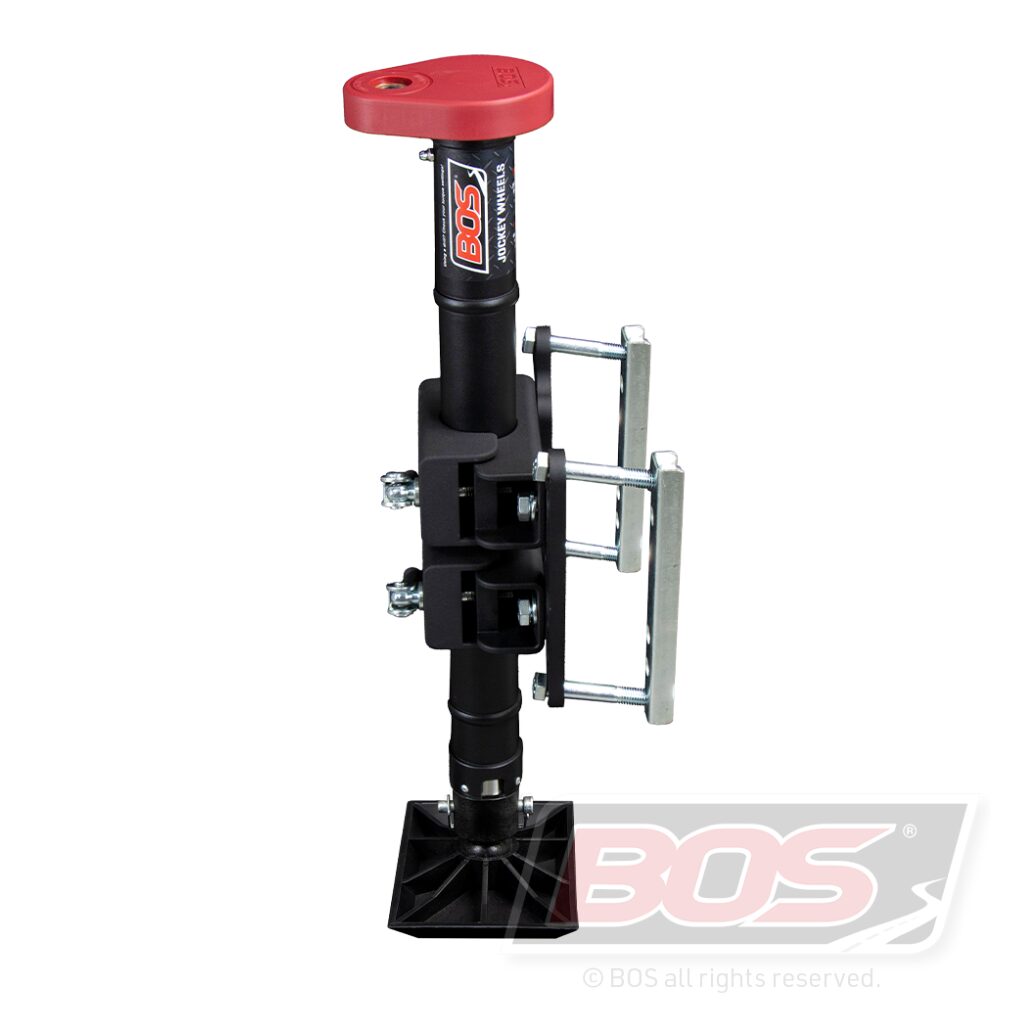

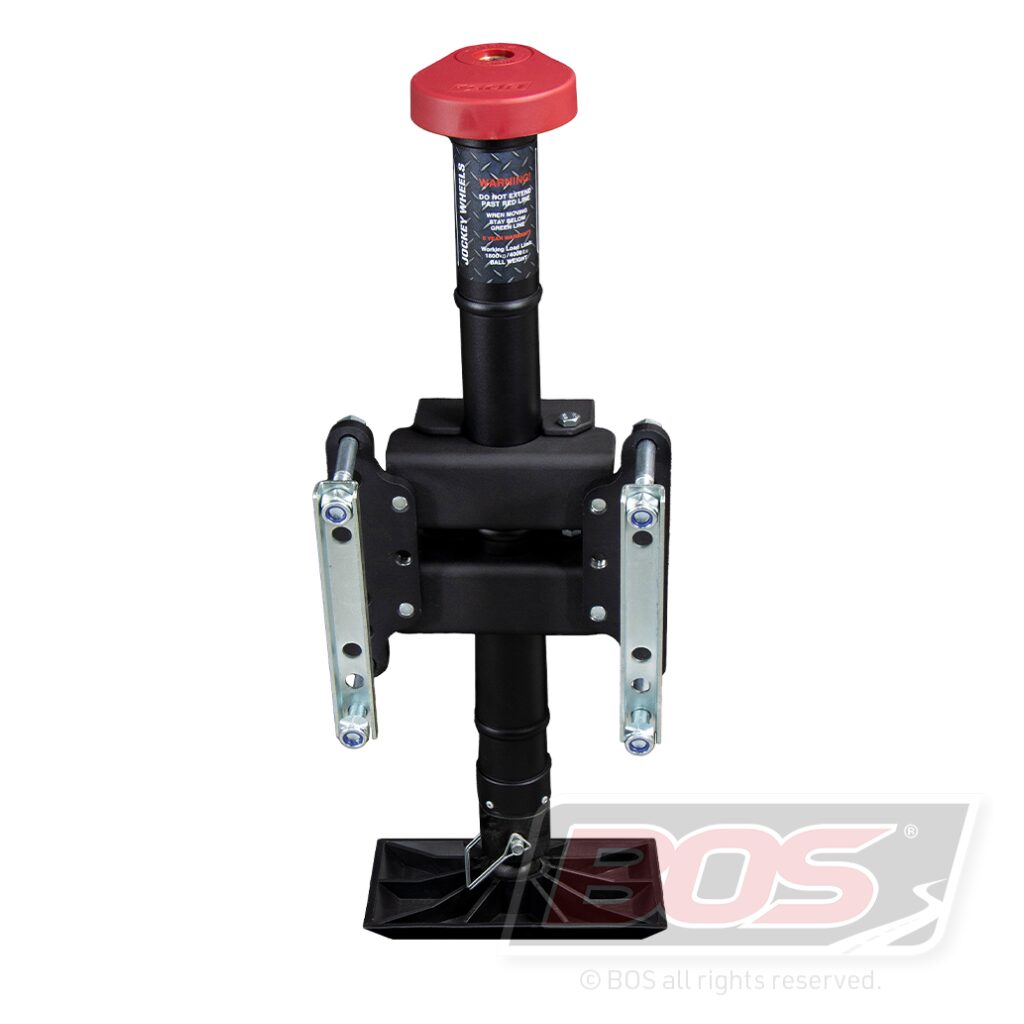

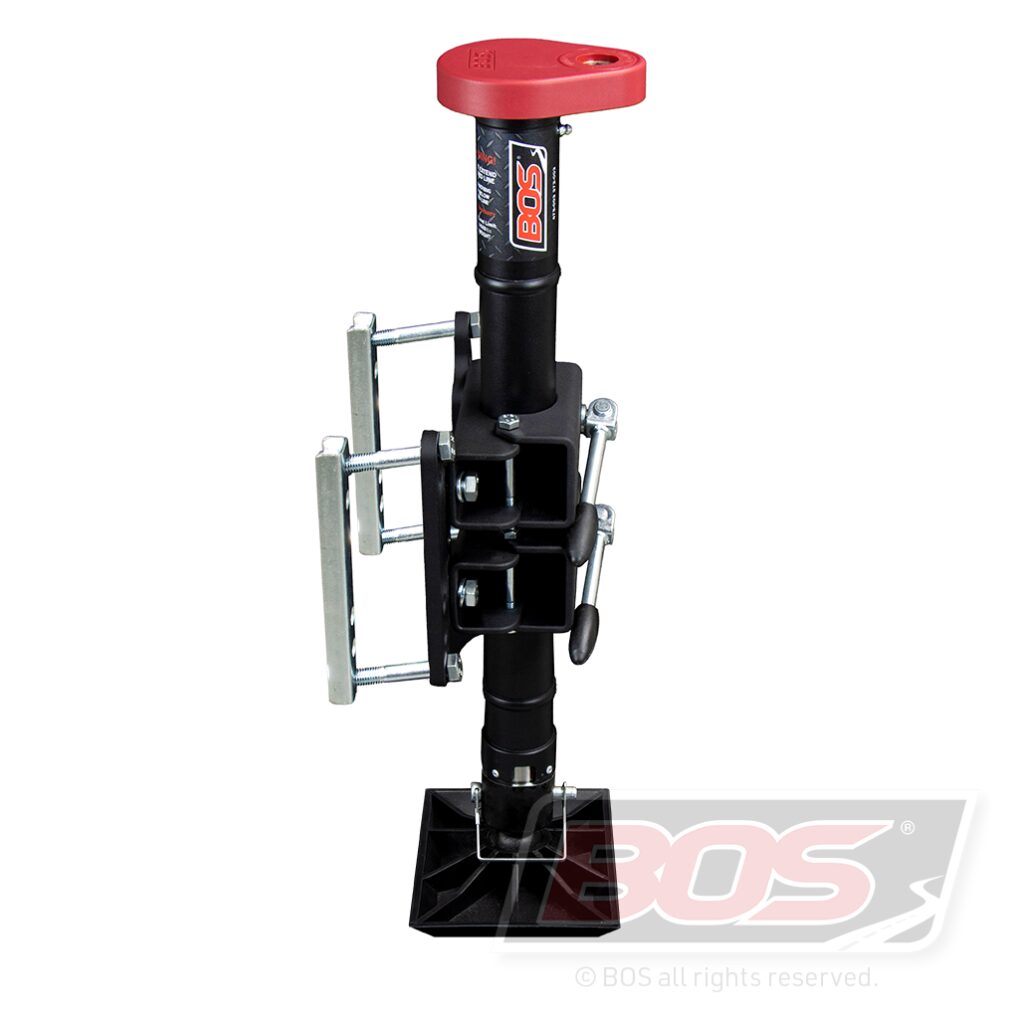

BOS 473-030 3 Rib Gearbox Double Clamp Bracket Unit. This bundle brings double‑clamp stability to our existing 3 Rib 50mm gearbox Jockey unit. Ideal for customers who want to relocate the Jockey unit without having to get a welder involved. Double clamp set up is great for extra support against twisting. The kit includes two 50mm clamps, and mounting hardware to suit up to 6″ (150mm) chassis

FEATURES AND BENEFITS:

• Ideal for crowded draw bars where space is limited.
• BOS heavy duty double clamp is adjustable, allowing you to gain extra height if required.
• Patented BOS Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
• LMATS Tested up to 1800kg in a rigid clamp setup.
• 400mm Extended travel.
• Unit can be left on while traveling, locking it in with medium clutch setting and the BOS traveling strap.
• The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
• 5 Year Warranty

SPECIFICATIONS:

• Will fit Draw Bars (chassis) from 75-150mm (4”-6”) High x 50mm (2’’) Wide.
• 120mm Pipe extension when extra height is needed.
• Key features for BOS 473-030 3 Rib Gearbox Double Clamp Bracket Unit, click here.
• Product dimensions BOS 473-030 3 Rib Gearbox Double Clamp Bracket Unit, click here.

WHAT IS INCLUDED:

• BOS 473-030 3 Rib Gearbox Double Clamp Bracket Unit
  • 1 x 010-190 Double Clamp 50mm
  • 1 x 010-033 Mounting Kit U-Bracket & Bolts
  • 1 x 010-062 Articulated Base Plate
  • 1 x 020-003 Manual Handle 12mm
  • 1 x 020-007 12mm Drill Drive Piece
  • 2 x 020-018 Quick Release Pin
  • 1 x 370-STRAP Travel Strap
  • 1 x 020-037 Jockey Weather Cover
  • 1 x 020-026 Stainless Steel Extension 120mm
  • 1 x 010-035 Stubby Can Cooler
  • 1 x 010-036 Stubby Bottle Cooler

IMPORTANT INFORMATION:

The BOS team of experts have a wealth of knowledge and experience, and they are always ready and willing to help. If you have a technical question or just need some advice about the BOS 473-003 3 Rib Gearbox Jockey Unit Kit, please call BOS Customer Service directly, 02 9623 6922.
