Trail-A-Mate Hydraulic Caravan & Trailer Jack.

The original hydraulic caravan and trailer jack that converts to a jockey wheel. It is a Hydraulic jockey wheel that converts in to a jack when you need it. You simply swap the wheel for a solid base plate.

It has many applications and can be used for Caravanning, Horse Floats, Trailers, Food Vans (the list goes on). It is an extremely versatile product.

In addition to its versatility they have spent many years perfecting and refining the Trail-A-Mate to be as safe and easy to use as possible.

FEATURES AND BENEFITS:

• Capable – WLL 1,000kg / ATM 2,900kg
• Versatile – Easily converts from a jockey wheel to a jack
• Easy – Being hydraulic it takes very little effort to operate
• Safe – Fully complies with the Australian mandatory safety standards (2693:2007)

SPECIFICATIONS:

• Hydraulic: Yes
• Working Load Limit (WLL): 1,000kg
• Aggregated Mass(ATM): 2,900kg
• Jockey Clamp Size: Standard 50mm Clamp
• Wheel Attachment: INCLUDED
• Base Plate: INCLUDED
• Engagement Fittings: INCLUDED
• Wheel Brace: INCLUDED
• Operating Limits
  • Minimum Height:145mm
  • Maximum Height:780mm
  • Lifting Range:380mm
  • Working Load Limit:1000kg
• Owners manual information click here.

WHAT IS INCLUDED:

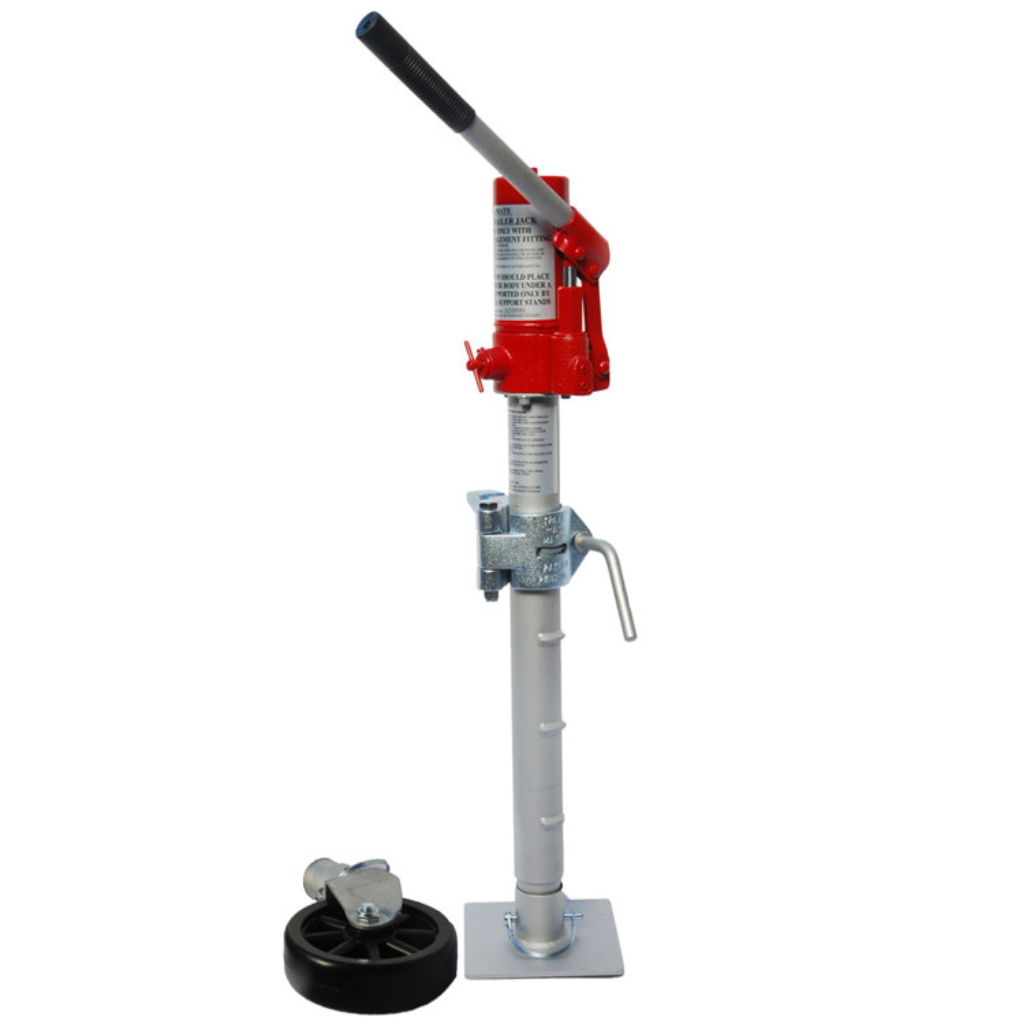

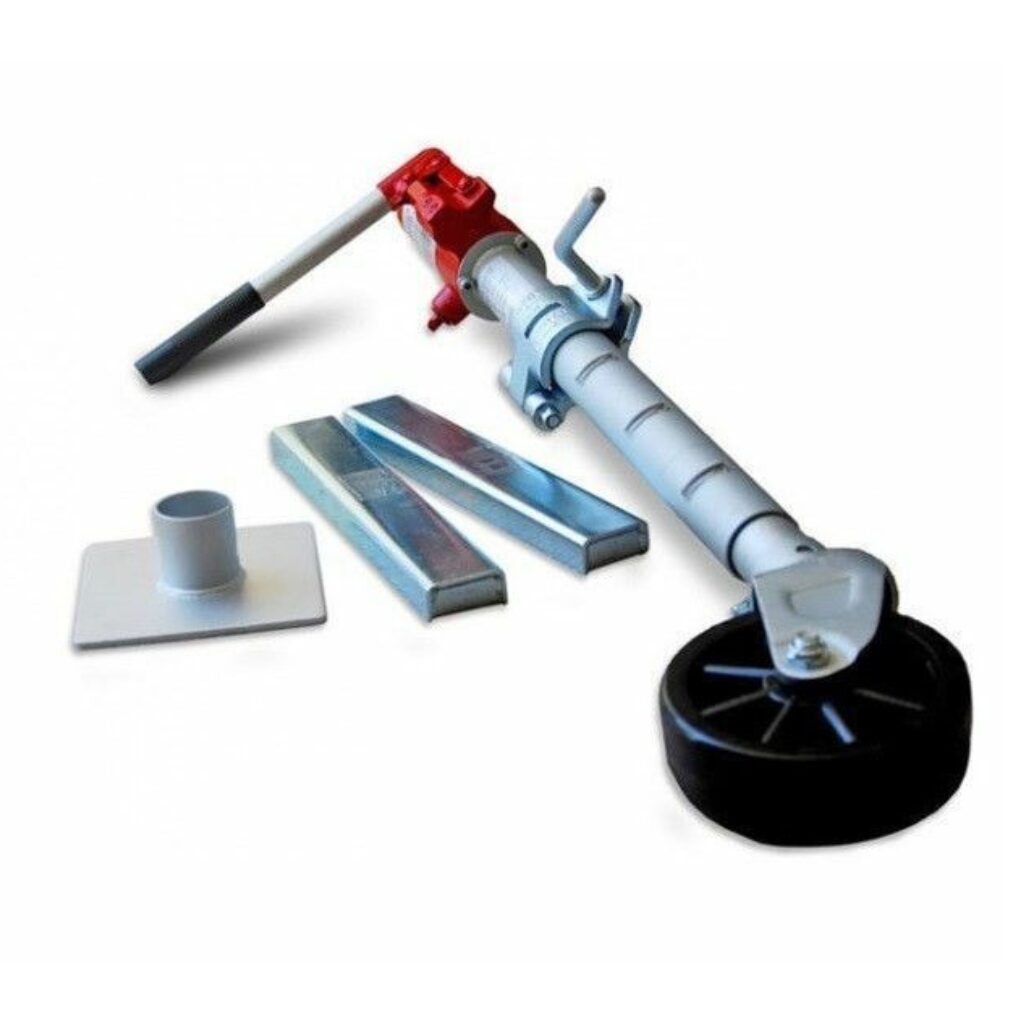

• 1 x Trail-A-Mate Hydraulic Caravan & Trailer Jack
  • 1 x Hydraulic Jack on shaft
  • 1 x Lifting clamp
  • 1 x Jockey wheel
  • 1 x Base plate with pin

IMPORTANT INFORMATION:
