Description

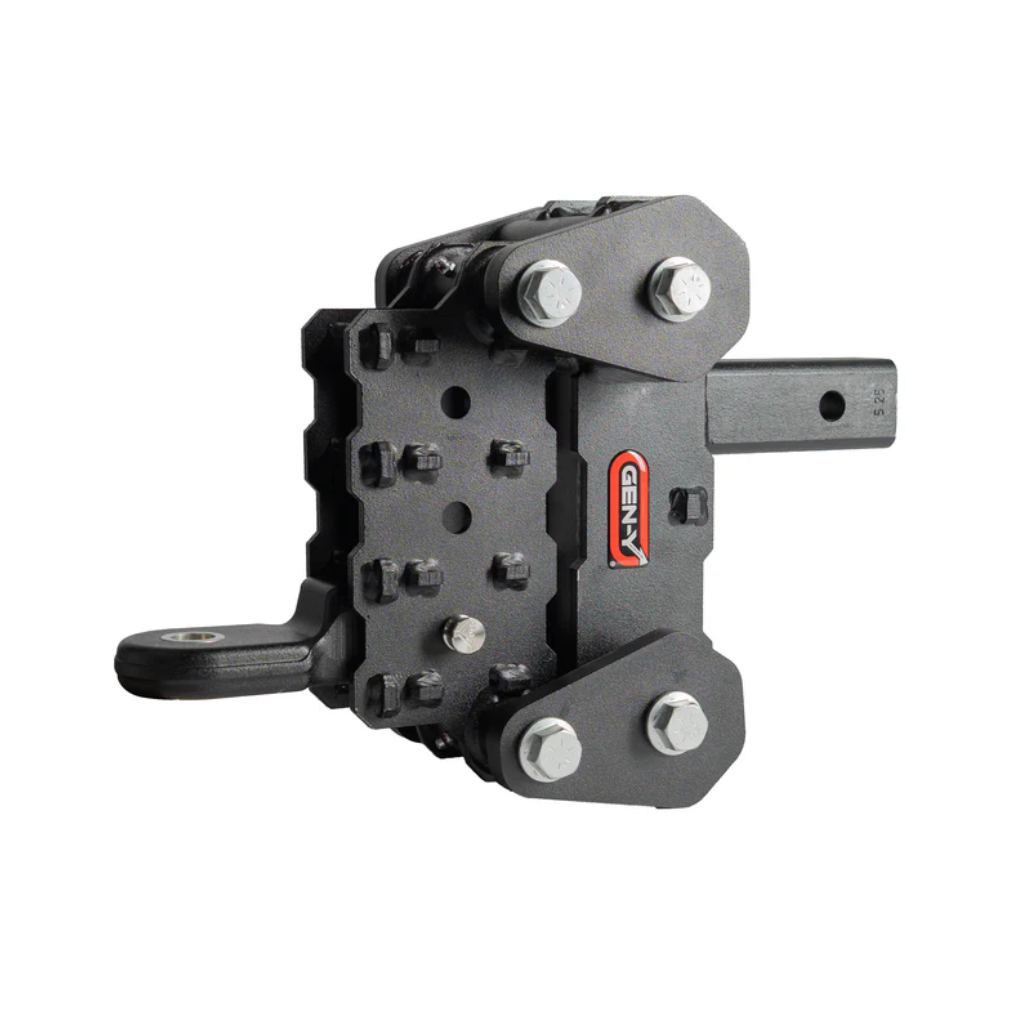

xGen-Y Hitch GHM-PH14-AT-R 2" Shank, 3,500 KG Torsion-Flex Hitch & Australian Tongue
The PHANTOM-XT 3500kg Drop Hitch is a competitively priced hitch perfect for medium-duty towing. The PHANTOM-XT Hitch is compatible with 2” vehicle receivers and is available with a AT Tongue to suit D035. GEN-Y’s innovative stacked tube design allows customers the ability to adjust the ball mount up or down in order to achieve the right amount of drop every time.
Not only is the PHANTOM-XT Hitch fully adjustable, but it can also be used in the drop or the rise position. This makes the PHANTOM-XT reliable as well as versatile. This hitch is an excellent option for all your towing needs.
In addition to being heavy duty, fully adjustable, and versatile, the PHANTOM-XT also contains rubber torsion arms. Therefore, only 10% of the trailer inertia transfers compared to 100% when using a hard connection hitch. The 90% smoother ride allows you to glide instead of bounce, therefore providing a safer ride. Since the tow vehicle and trailer track independently, customers gain greater control and safety through the reduction in sway and trailer bounce.
Customers also greatly increased braking control because all of the weight on the tow vehicle and trailer is distributed evenly. Bumps, potholes, curves, hills, and even other drivers can be a hazard, and the PHANTOM-XT keeps you under control when confronted with these conditions.
Additionally, this product reduces metal fatigue caused by traditional towing that takes a toll on the trailer and its contents.
Features and Benefits:
2″ Receiver Shank
Ideal Ball Weight 130kg - 280kg
Rated up to 3,500KG Towing Capacity
3 Adjustable Positions, with a drop range of 4.25"

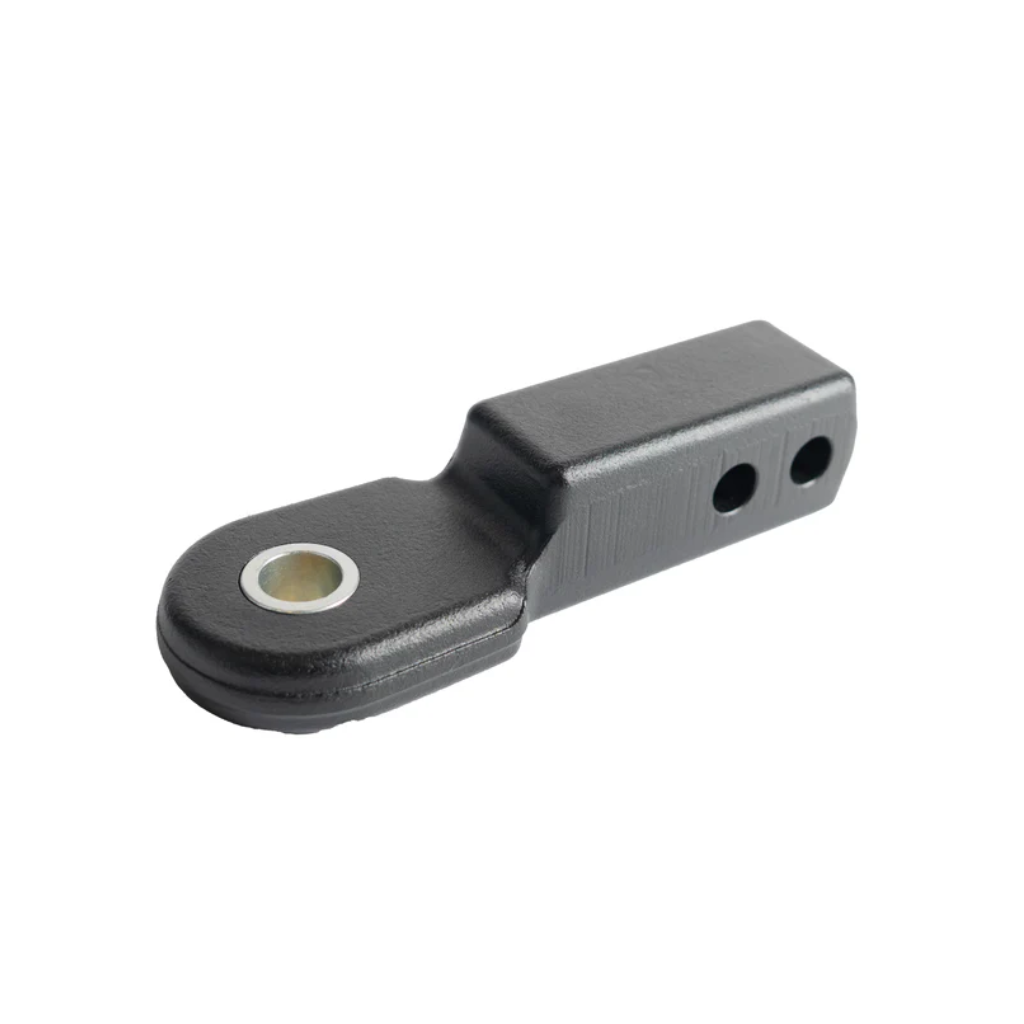

Comes with an Australian Tongue and Reducer Bush to suit DO35
Fabricated with Heavy Duty Steel
Durable Black Powder Coat Finish
Gen Y Hitch Famous Torsion System, made much lighter
Creates up to a 90% Smoother Ride
Made in the USA
Specifications:
Limited Lifetime Warranty
Maximum towing weight = 3500kg
Maximum rated tongue weight = 350kg
What is Included:
1 x Gen-Y Hitch GHM-PH14-AT-R 2" Shank, 3,500 KG Torsion-Flex Hitch & Australian Tongue
Important Information:
Not what you are looking for? Check out our full range of Hitches, Ball Mounts & Accessories here.
Please note: You should never exceed recommended capacity on any trailer tow coupling or vehicle receiver hitch
Image for illustrative purposes. The Phantom-XT Hitch is NOT recommended to be used with weight distribution. The PHANTOM-XT Hitch is NOT recommended to be used with non GEN-Y Hitch towing attachments.
Torsion hitches require some initial towing for a few hundred kilometres with a load to properly adjust the torsion rubbers for their intended flexibility. During assembly, we freeze the torsion rubbers to fit them into the housing. This initial towing period helps them settle in and start functioning as expected.
Locating pin holes may have a 5mm positioning tolerance. All hitches may not be exact in measurements.
