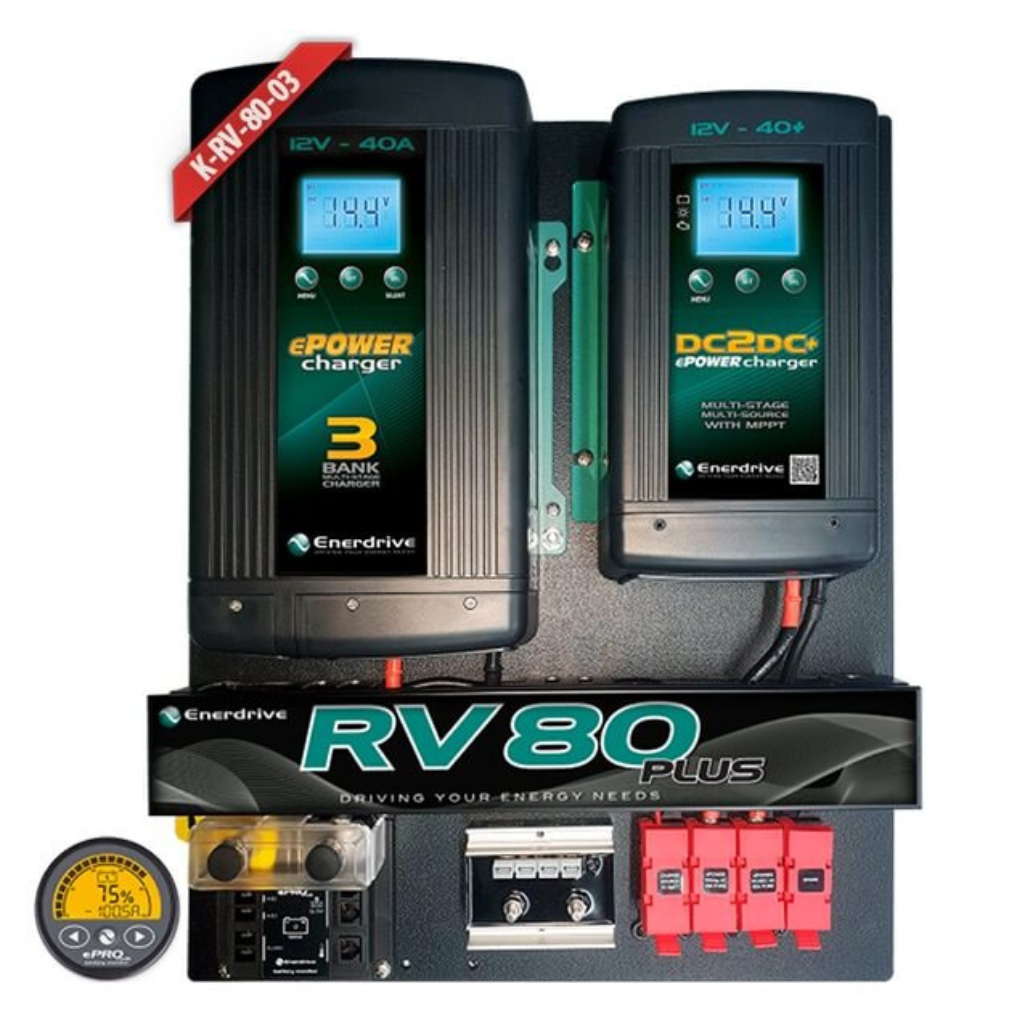

Enerdrive K-RV-80-03 Installation Board with Monitor & Low Battery Cutout. Enerdrive K-RV-80-03 Plus Installation Board with Battery Monitor & Low Battery Cutout is the highest-spec version of the RV80 pre-wired installation board range from Enerdrive | Dometic. Designed for caravans, camper trailers, 4WD canopies and off-grid touring vehicles, the K-RV-80-03 combines AC charging, DC-DC charging, battery monitoring and intelligent low voltage load protection into a professionally pre-wired power management platform.
The integrated Low Battery Cutout (LBC) system is controlled via the ePRO+ battery monitor and is designed to automatically disconnect loads if battery voltage or state of charge drops too low, helping protect lithium batteries from excessive discharge.
Features and Benefits:
Pre-wired installation board: Factory assembled and wired system reduces install time and minimises wiring errors in RV, canopy and caravan builds
Dual charging system: Combines AC and DC charging so batteries can be charged from either 240V mains or vehicle/solar while driving
40A AC charging capability: Enables fast charging when connected to shore power or generator supply
40A DC-DC charging with solar input: Supports alternator charging while driving and solar input via integrated MPPT functionality
ePRO+ battery monitor included: Provides real time battery voltage, current flow, state of charge and system status feedback
Integrated Low Battery Cutout protection: Automatically disconnects loads during low voltage or low state of charge conditions to help protect lithium batteries from over-discharge
Integrated fuse protection: Includes pre-installed fusing for AC charger, DC-DC charger and load output circuits for system safety
Lithium battery compatible: Designed for LiFePO4 lithium batteries as well as AGM and sealed lead-acid batteries
Compact composite mounting board: 12mm water and rot resistant board allows easy installation into cabinetry or vehicle compartments
Designed for off-grid touring: Suitable for caravans, camper trailers and canopy builds requiring basic but reliable power management
Specifications:
Model: K-RV-80-03 Plus
System Type: Pre-wired RV installation power board
AC Charger: 40A (240V input via mains or generator)
DC-DC Charger: 40A (vehicle alternator + solar input)
Battery Monitoring: ePRO+
Low Battery Cutout: Enerdrive 12/24V 40A LBC
Battery Compatibility: Lithium (LiFePO4), AGM, Gel, sealed lead-acid
Mounting Board: 12mm black composite
Dimensions: 480mm (L) × 400mm (W) × 100mm (D)
Weight: 15 kg
Warranty: 5 Years
Wiring Diagram, click here
What is Included:
1 × Enerdrive ePOWER 40A AC charger
1 × Enerdrive ePOWER DC-DC 40+ charger
1 × ePRO+ battery monitoring system
1 × Enerdrive ePOWER 12/24V 40A Low Battery Cutout
1 × ePOWER DC2DC 60A Output Fuse Connection
1 × ePOWER AC Charger 50A Output Fuse Connection
1 × 50A Load Output Fuse Connection
1 × 12mm Composite Mounting Board
Integrated Monitoring and Charger Fusing
Pre-Wired DC Distribution and Protection System
Full Wiring Diagram and Installation Documentation Included
