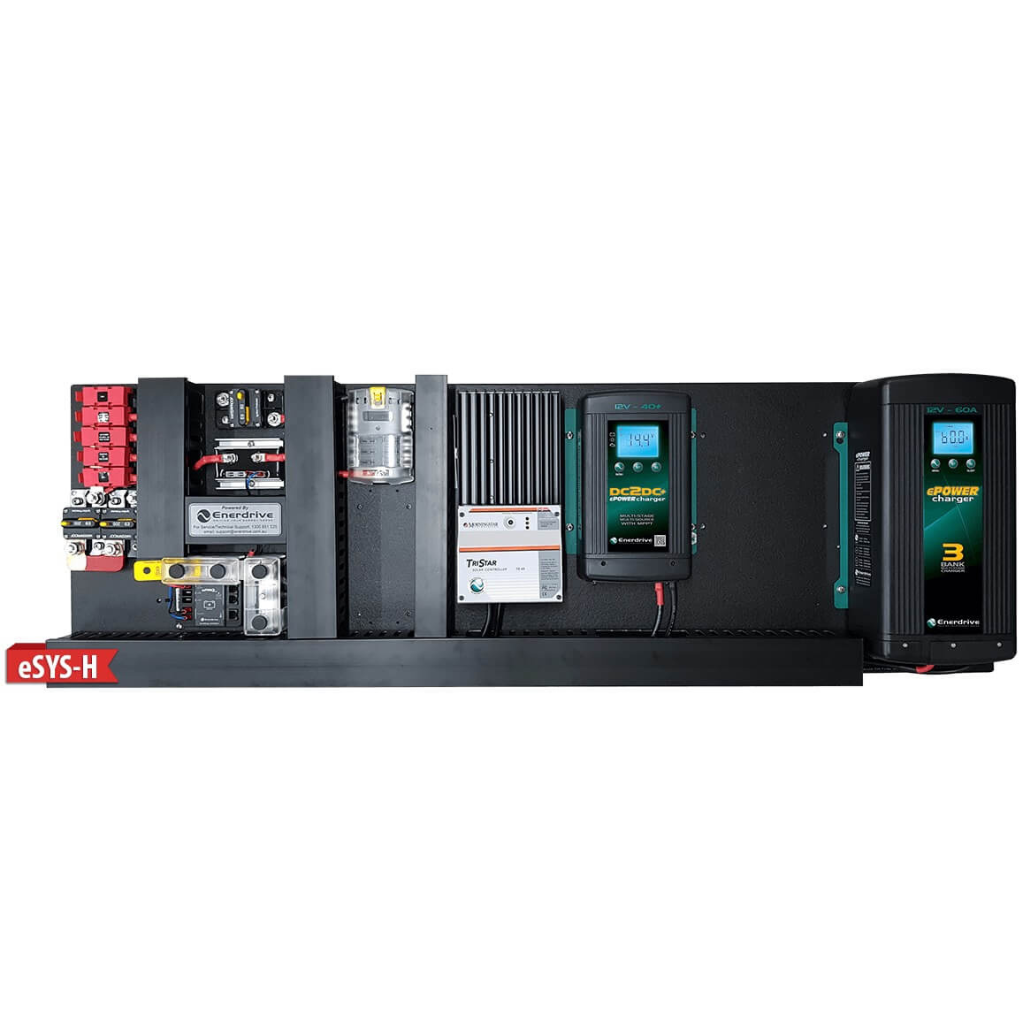

Enerdrive ESYS-H eSYSTEM Pre-Wired Power System Board. Enerdrive ESYS-H eSYSTEM Pre-Wired Power System Board is one of the higher output configurations in the Enerdrive | Dometic eSYSTEM range, designed for caravans, camper trailers, 4WD canopies and expedition vehicles that need strong charging performance and a full integrated inverter based power setup on a pre-wired installation board.
The ESYS-H is built on a large composite mounting board with all major components pre-installed and wired, including chargers, inverter, monitoring, fusing and distribution. It’s designed to reduce installation time while still supporting demanding off-grid electrical loads and higher charging currents.
Features and Benefits:
Complete pre-wired power management system: Integrates AC charging, DC-DC charging, inverter functionality, monitoring and fused distribution onto a single factory built board for simplified installation
Higher 60AC charging capacity: Allows faster battery charging from 240V mains or generator power compared to smaller ESYS boards
DC-DC charging with solar input: Supports alternator charging while driving and solar charging for extended off-grid use
2000W pure sine wave inverter capability: Powers common 240V appliances such as coffee machines, microwaves, laptops, TVs and small cooking appliances (system dependent)
ePRO+ Battery monitoring system: Provides real time battery status, current flow, charging activity and system performance data
Pre-wired installation board: All components are mounted and wired on a 12mm water and rot resistant composite board to reduce install time and wiring complexity
Lithium battery compatible: Designed for LiFePO4 lithium systems as well as AGM and sealed lead-acid batteries
Designed for off-grid touring and heavy use: Suited to larger caravan builds, remote travel setups and high demand canopy electrical systems
Built-in protection systems: Includes circuit breakers, fusing, bus bars and safety protection for both charging and load circuits
Specifications:
Model: ESYS-H
System Type: Pre-wired eSYSTEM power distribution board
AC Charging: 60A
DC-DC Charging: 40A vehicle + solar input (Enerdrive ePOWER DC2DC40+)
Inverter Capability: Up to 2000W pure sine wave inverter integration
Battery Monitoring: ePRO+ monitoring system
Battery Compatibility: Lithium (LiFePO4), AGM, Gel, Sealed Lead Acid
Input Voltage: 12V DC
Mounting: 12mm composite water and rot resistant board
Dimensions: 1195mm (W) × 380mm (H) × 111mm (D)
Weight: 17kg
Warranty: 5 Years
Wiring Diagram, click here
What is Included:
1 × Enerdrive ePOWER 60A AC charger
1 × Enerdrive ePOWER 40A DC-DC charger
1 × Enerdrive 2000W pure sine wave inverter
1 × Enerdrive ePRO+ monitoring system
1 × Main system circuit breaker
1 × Inverter circuit protection
1 × Solar input protection
1 × Fuse distribution block for critical and auxiliary loads
1 × Negative bus bar assembly
1 × Lithium battery restart / recovery switch
1 × Pre-wired composite mounting board
1 × Installation wiring diagram and documentation
Important Information:
