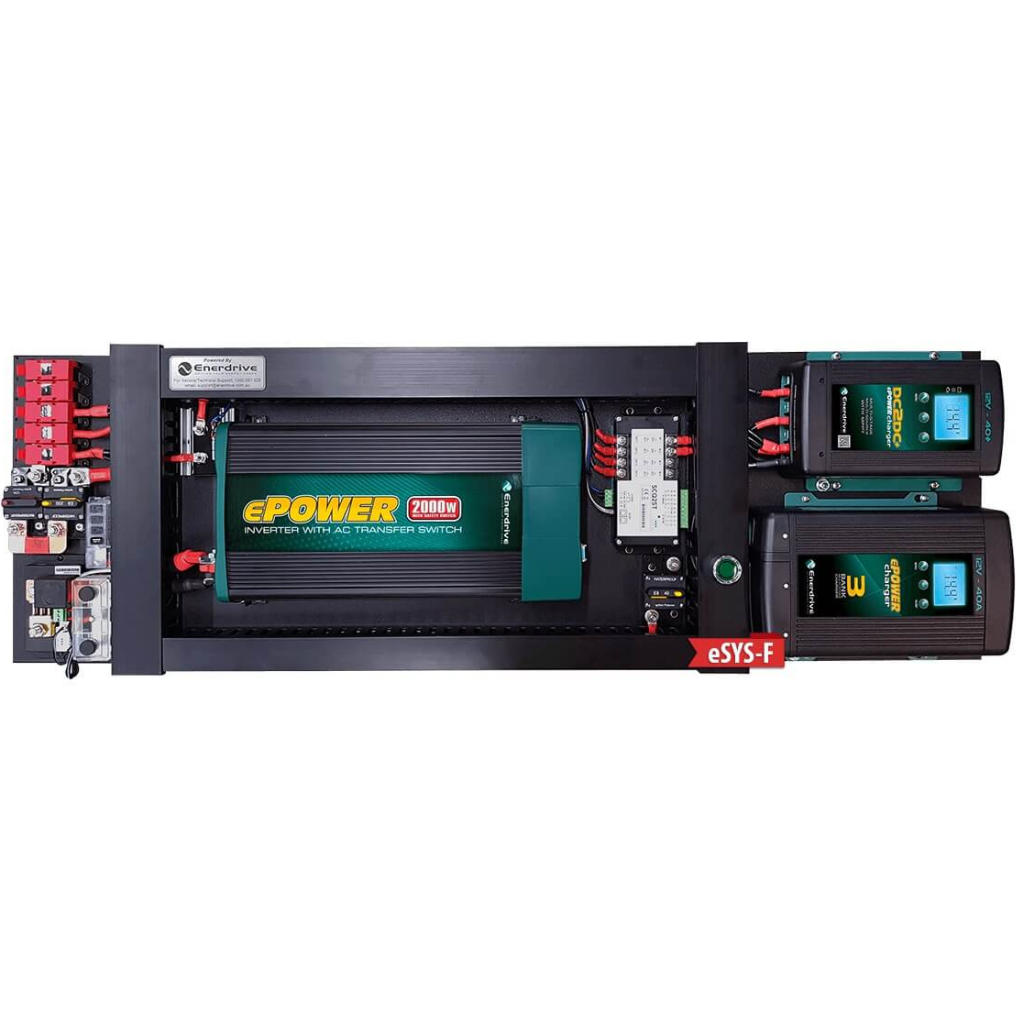

Enerdrive ESYS-F eSYSTEM Pre-Wired Power System Board. The Enerdrive ESYS-F eSYSTEM Pre-Wired Power System Board is a premium mid to high capacity pre-wired off-grid electrical system from Enerdrive | Dometic, designed for caravans, camper trailers, 4WD canopies and expedition vehicles. It sits within the eSYSTEM range as a more capable “all-rounder” configuration, offering a balance of inverter power, charging performance and integrated Simarine monitoring in a single factory assembled board.
The ESYS-F is designed to simplify complex 12V system installs by combining all major components charging, inverter, distribution, protection and monitoring into one professionally pre-configured board. It is particularly suited to users who want a higher capacity system than entry ESYS boards (like ESYS-D or ESYS-E), but without stepping up into large inverter heavy or multi-inverter platforms.
Features and Benefits:
Complete integrated power management system: Combines AC charging, DC-DC charging, inverter integration, battery monitoring and fused power distribution into one pre-wired system board for fast installation and reliable operation
40A AC charging capability: Allows efficient battery charging from 240V mains power or generator input when connected to shore power at campgrounds or powered sites
40A DC-DC charging with solar input: Charges auxiliary batteries from the vehicle alternator while driving and supports solar charging for extended off-grid operation
2000W inverter system capability: Designed to run 240V appliances such as coffee machines, microwaves, laptops, TVs, chargers and light power tools (depending on configuration)
Simarine battery monitoring system: Provides real-time monitoring of battery state of charge, voltage, current flow, charging status and system performance through a dedicated display interface
Pre-wired installation board: All components are mounted and professionally wired on a composite board, reducing install time and wiring errors
Lithium battery compatible: Works with LiFePO4 lithium batteries as well as AGM and sealed lead-acid battery systems
Built for off-grid touring: Designed for caravans, camper trailers, canopy builds and remote travel where reliable energy management is essential
Advanced protection systems: Includes pre-installed circuit breakers, fusing, bus bars and system protection to safeguard loads and charging equipment
Specifications:
Model: ESYS-F
System Type: Pre-wired eSYSTEM power distribution board
DC-DC Charging: 40A (vehicle + solar input via Enerdrive ePOWER DC2DC40+)
AC Charging: 40A (240V mains / generator input)
Inverter Capability: Up to 2000W pure sine wave inverter integration
Battery Monitoring: Simarine battery monitoring system
Battery Compatibility: Lithium (LiFePO4), AGM, Gel, Sealed Lead Acid
Input Voltage: 12V DC
Mounting: Factory mounted on insulated composite installation board
Warranty: 5 Years
Wiring Diagram, click here
What is Included:
1 × Enerdrive ePOWER 40A AC charger
1 × Enerdrive ePOWER DC-DC 40+ charger (vehicle + solar input)
1 × Enerdrive inverter (typically 2000W class, configuration dependent)
1 × Simarine battery monitoring system (Pico or equivalent)
1 × Main system circuit breaker assembly (pre-installed)
1 × Inverter circuit protection (high amp breaker/fuse)
1 × Solar input protection and distribution fusing
1 × Negative bus bar and DC distribution system
1 × Fuse block for auxiliary and critical loads
1 × Lithium battery restart / recovery switch
1 × Pre-wired composite mounting board
1 × Full wiring diagram and installation documentation
